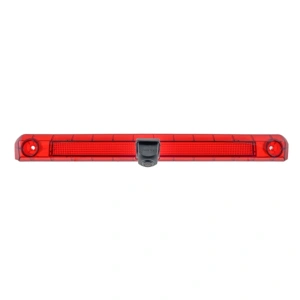

Vehicle-specific CVBS (NTSC) reversing camera for the VW Transporter T5, T6, and T6.1 with wing doors up to model year 2021. The KVX-T6-F simply replaces the factory left brake light lens. From model year 2022, the bulb in the brake light may be stuck, and the KVX-T6-F can no longer be installed.

COMPATIBILITY
- Volkswagen Transporter T5 up to model year 2021 with wing doors
- Volkswagen Transporter T6 up to model year 2021 with wing doors
- Volkswagen Transporter T6.1 up to model year 2021 with wing doors

The camera is suitable for continuous 24/7 use.

TECHNICAL DATA
- Image display mirrored
- Image sensor: 1/3" CMOS High performance Digital Super Clarity Image Sensor
- Resolution 756x504 pixels
- Viewing angle 150° diagonal
- Image format: NTSC
- 480 lines of resolution
- IP69 waterproof
- Operating voltage: 12/24 Volt DC
- Power consumption: max. 200mA
- Operating temperature: -20° to 70°C
- Minimum illumination: 0.2 Lux
- Color: black
- Cable length: 10 meters with MINI-DIN plugs
- E approval E9-10R-05.1652
- CE approval EN 55022: 2010; EN 61000-3-2:2006+A1:2009+A2:2009; EN61000-3-3:2008; EN 55024:2010
- FCC approval ANSI C63.4-2003

SCOPE OF DELIVERY
- Rear view camera
- AK1035 power supply
- AK1034 Mini-DIN extension cable 10m

IMPORTANT NOTE
Depending on the roof structure and installed tow bar of the vehicle, the tow bar may not be visible on the monitor.
