COMPATIBILITY

• Renault Master 4 RDA/XDD
• Nissan Intersar NDA (NV400)

TECHNICAL DATA

• Video standard AHD 1080P 30F (CVBS switchable)
• Image sensor: GC2399 (FH8536H)
• Image sensor size 1/2.7"
• Resolution 1920x1080 pixels
• 3D noise reduction -
• Sequential scanning
• Minimum illumination: 0.005 lux
• Signal-to-noise ratio >50dB
• Automatic white balance
• Horizontal mirror image display
• Guide lines: on (can be turned off by disconnecting the cable loop)
• Horizontal viewing angle 155°
• Vertical viewing angle 100°
• Diagonal viewing angle 185°

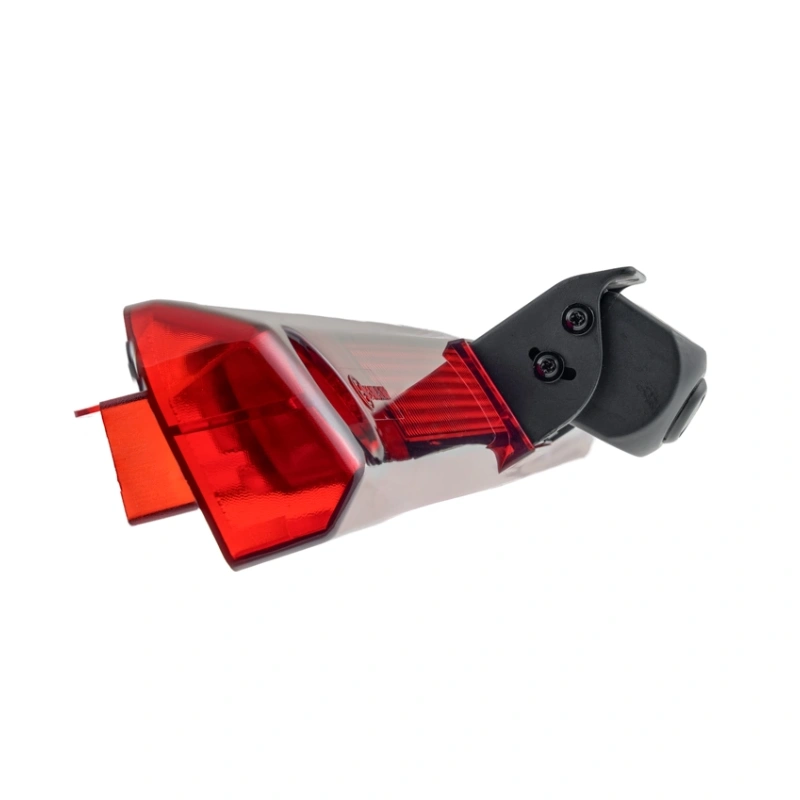

• Camera head vertically up to 20° adjustable
• Protection class IP69 waterproof
• Operating voltage: 9-16 volts DC
• Current consumption: max. 75mA
• Operating temperature: -20° to 70°C
• Cable length: 10 meters with 4-pin mini-DIN connectors
