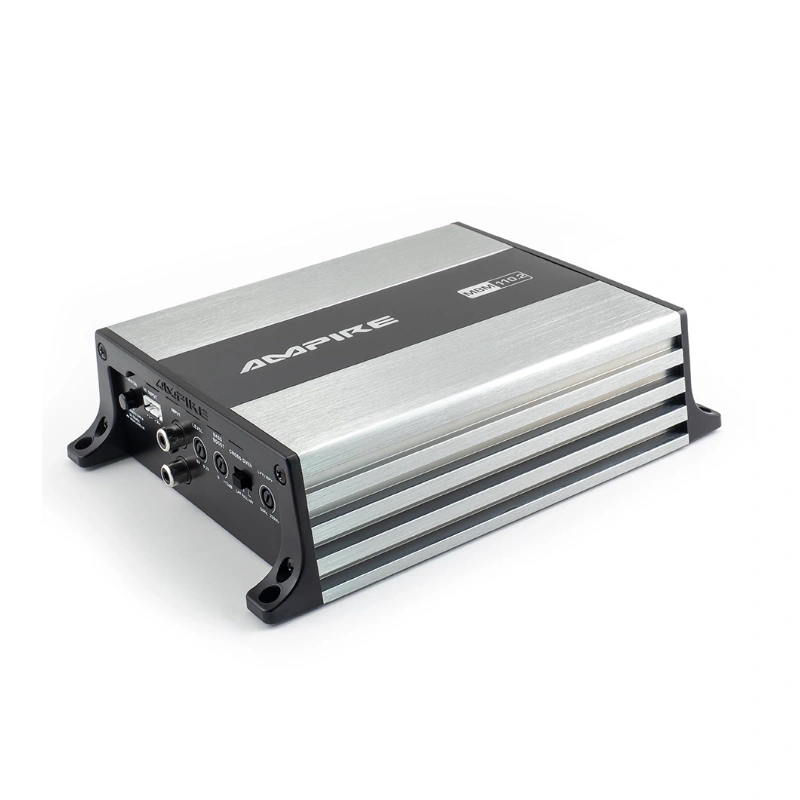

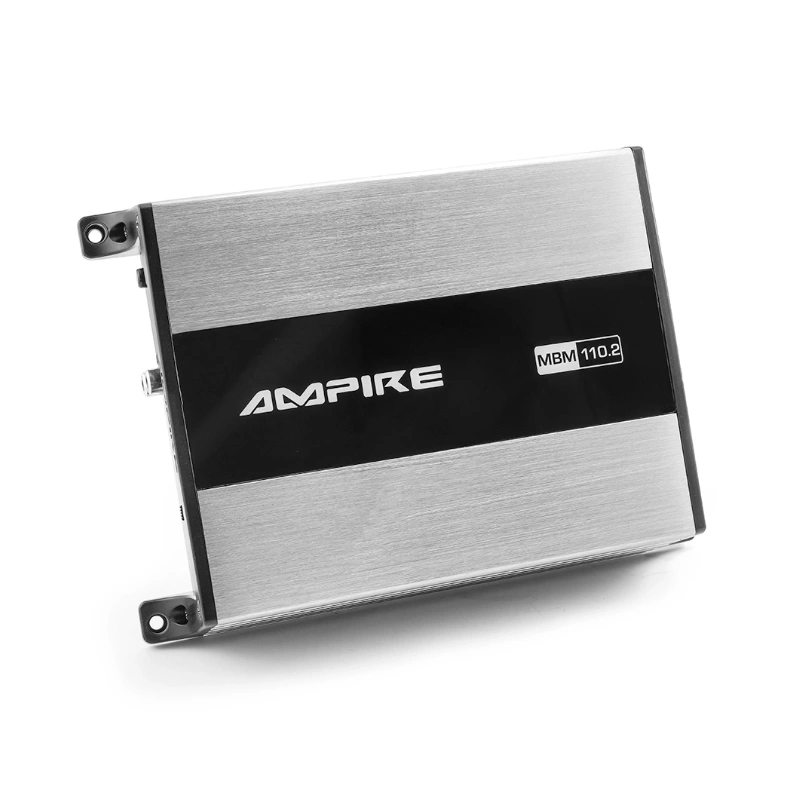

The new MBM110.2 power amplifier. The speaker inputs are now balanced and can also be used with high-end sound systems. We've also added a fixed subsonic filter at 25 Hz. This prevents unwanted frequency ranges from being amplified.

The new MBM110.2 power amplifier. Features

2-channel digital amplifier
Ultra-compact design
2x RCA & 2x balanced speaker inputs
220 watts RMS / 440 watts max.
2 ohms stable or 4 ohms stable (bridged)
Illuminated AMPIRE logo
Maximum dimensions (L x W x H): 200 x 141 x 50 mm
Weight: 1.35 kg

Power supply
Operating voltage: 10–16 VDC
Fuse: 20A x 1
Standby current: 0.68 A
Standby current when off: <0.0004 A

Amplifier
2 ohms stable or 4 ohms stable (bridged)
Output power (RMS) @ 14.4 V / 4 ohms: 70 watts x 2
Output power (RMS) @ 14.4 V / 2 ohms: 110 watts x 2
Output power (RMS) @ 14.4V / 4 ohms: 220 watts x 1 (bridged)
Output power (max.) @ 14.4V / 4 ohms: 140 watts x 2
Output power (max.) @ 14.4V / 2 ohms: 220 watts x 2
Output power (max.) @ 14.4V / 4 ohms: 440 watts x 1 (bridged)
Total harmonic distortion: <0.5%
Signal-to-noise ratio: >90dB
Channel separation: >65dB
Damping factor: 100
Input sensitivity: 200mV - 6.0V

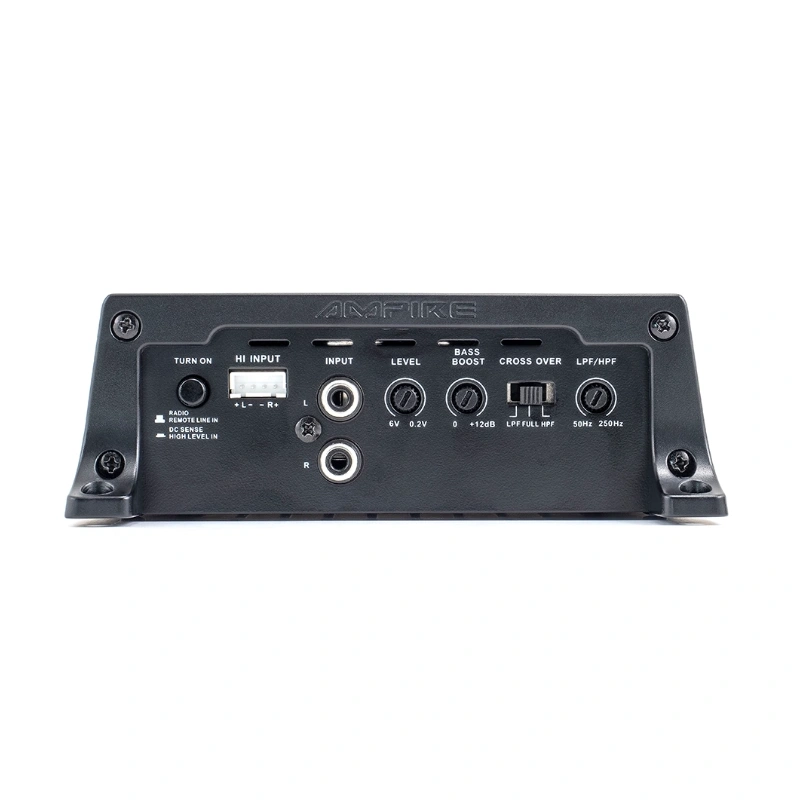

Filters
Inputs: RCA x2, High Level x2 (High Level Auto Turn On for radios with BTL amplifiers)
Low-pass filter/slope: 50Hz - 250Hz / 12dB
High-pass filter/slope: 50Hz - 250Hz / 12dB
Bass boost/frequency: 0 - 12dB @ 45Hz
Subsonic filter: fixed at 25Hz

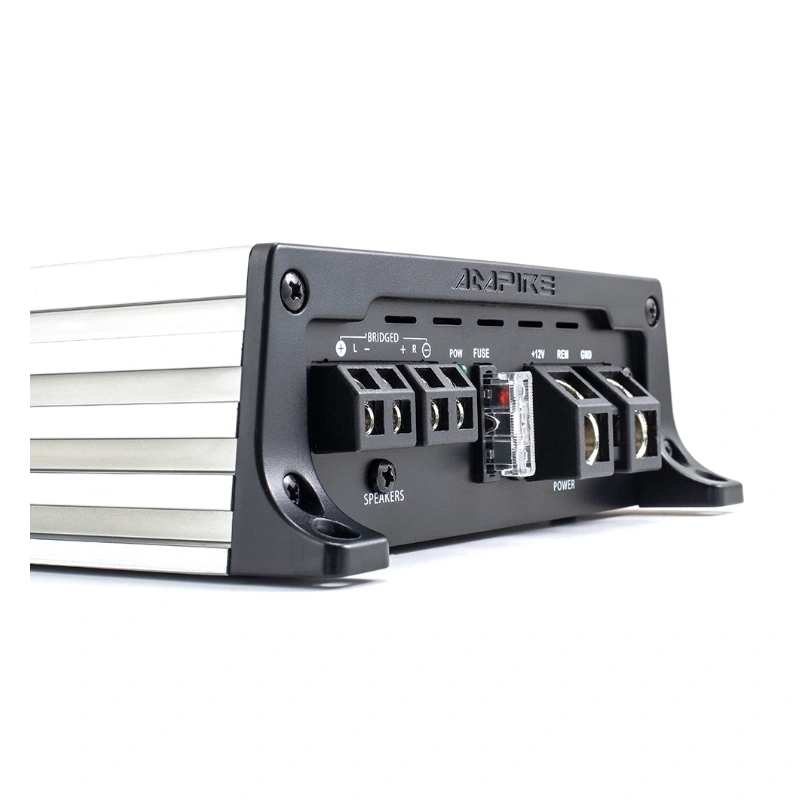

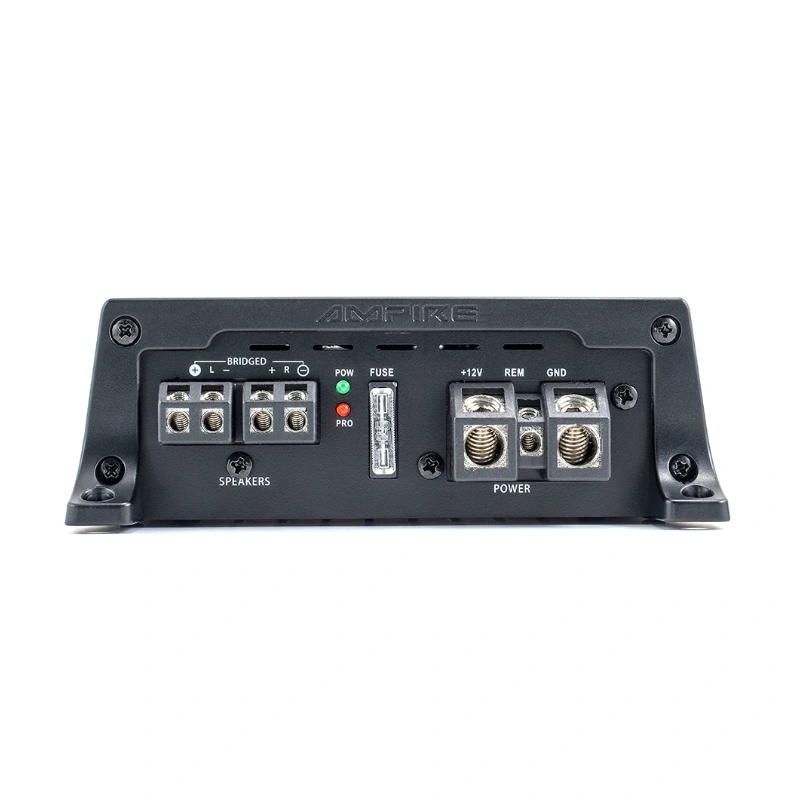

Cable cross-section of the connection terminals
Power supply up to 20mm²
Speaker up to 4mm²
