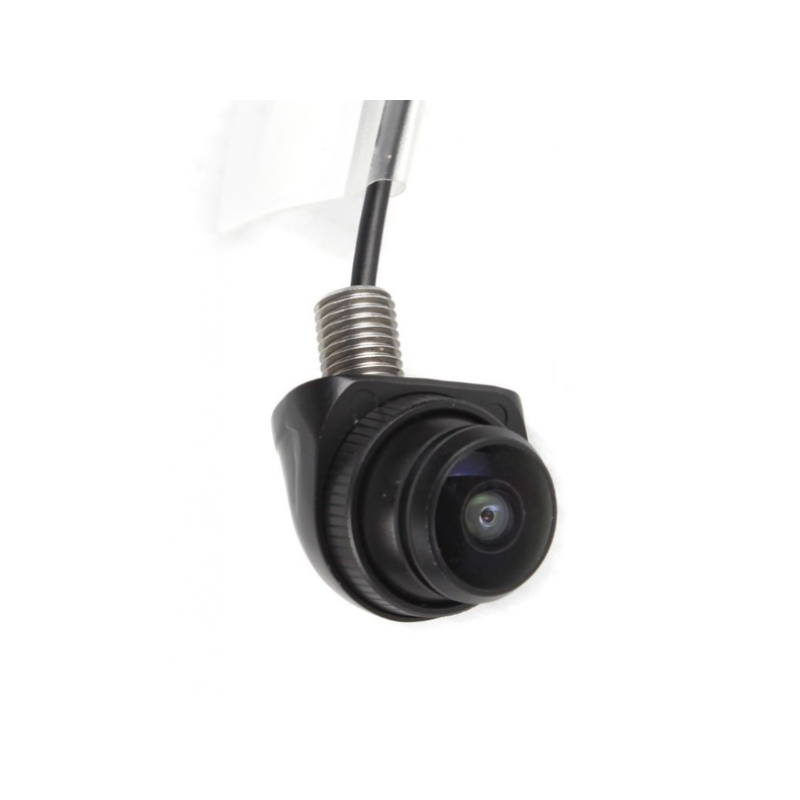

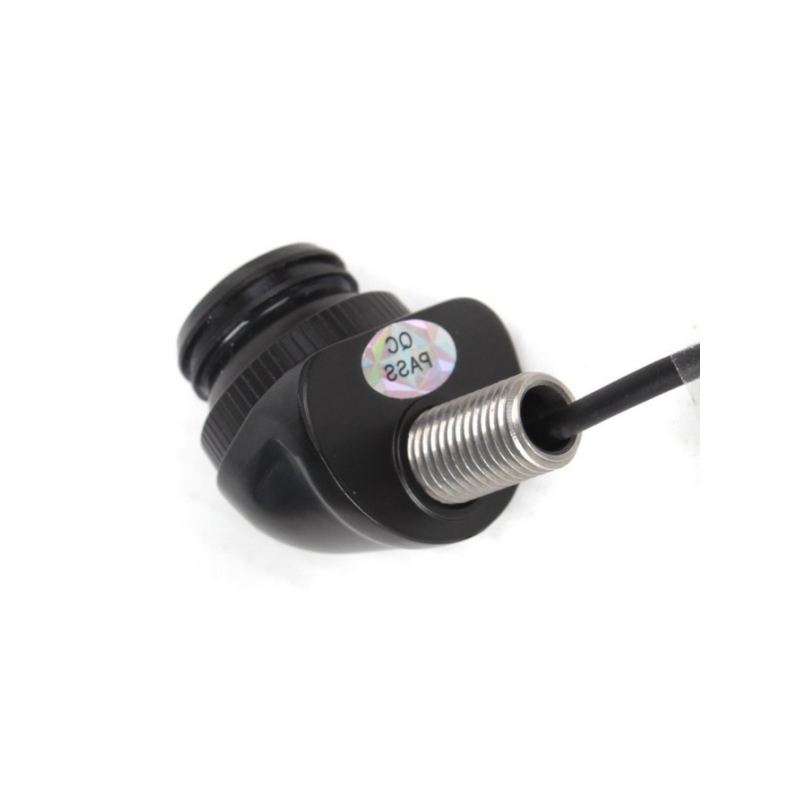

Universal miniature parking camera with the view angle of 190°, for outdoor installation IP69K, with a resolution of 800TVL, use as a rearview camera in the licence plate space, or as a side camera to the rearview mirror, or as a front to the grille of the front mask/bumper, a durable aluminum body, with the option to turn the guidelines on/off and to change the left/right image orientation.

Technical specifications

• 1/4" low light HD CMOS sensor
• scanning angle: 190
• image resolution 800 TV line
• brightness F1.
• min lighting less than 0.01Lu
• effective points 960x480
• power supply: 12V/24V
• TV system: NTSC
• weather protection: IP69K

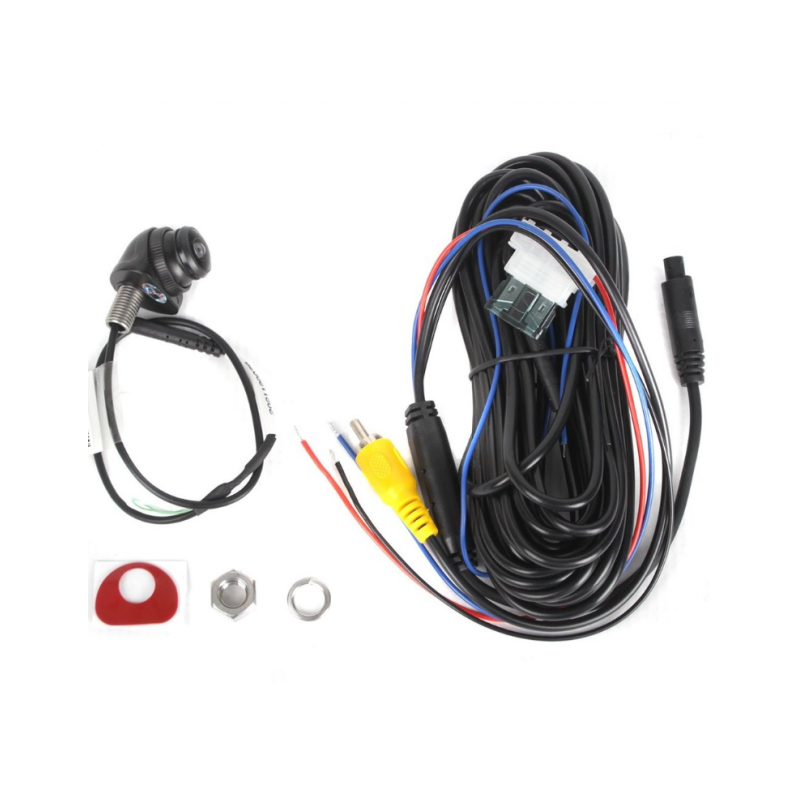

Cable

• Double shielding
• Length 8m
• End with CINCH connector
• Thin 5mm connector
• 2 power connection options

Features

• GREEN LOOP - guide lines            - disappear after cutting the loop (shown by default)
• WHITE LOOP - image orientation  - left/right side will swap after cutting the loop
