Compatibility

• FIAT Doblo 2 (model years 2010-2019)
• OPEL Combo D (model years 2011-2018).

The KV-DOBLO only fits vehicles with wing doors and simply replaces the factory brake light lens.

Technical data

• Mounting screws accessible from the front
• Mirror image display
• Image sensor: 1/3" CMOS PC3089
• Resolution: 720x480 pixels
• Viewing angle: 185° diagonal
• Viewing angle: 146° horizontal
• Viewing angle: 110° vertical
• Image format: NTSC
• 580 line resolution
• IP68 waterproof
• Minimum illumination: 0.1 lux
• Operating voltage: 9-16 volts DC
• Current consumption: max. 150mA
• Operating temperature: -20° to 70°C

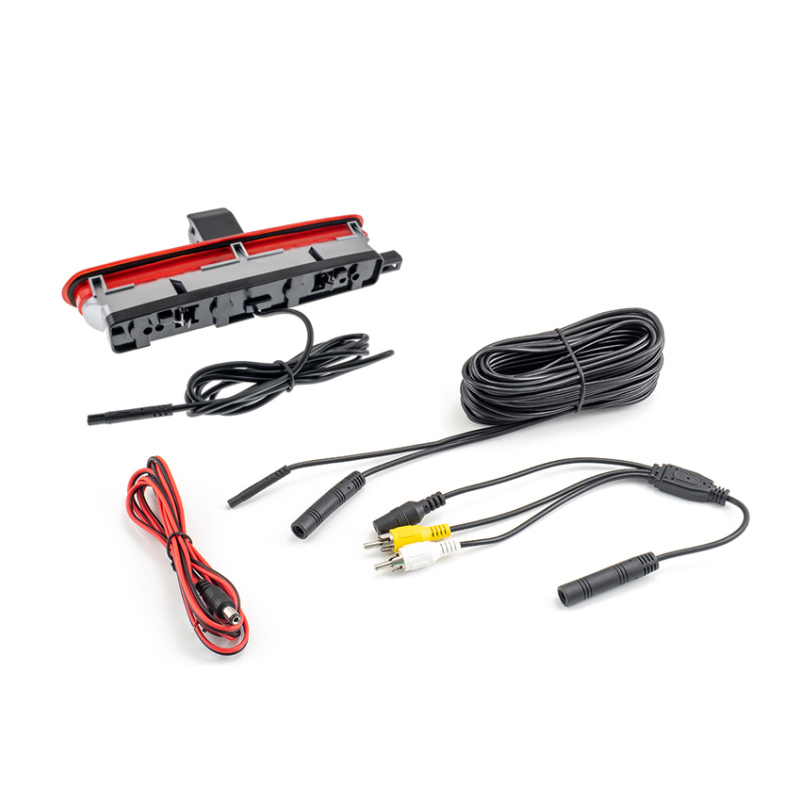

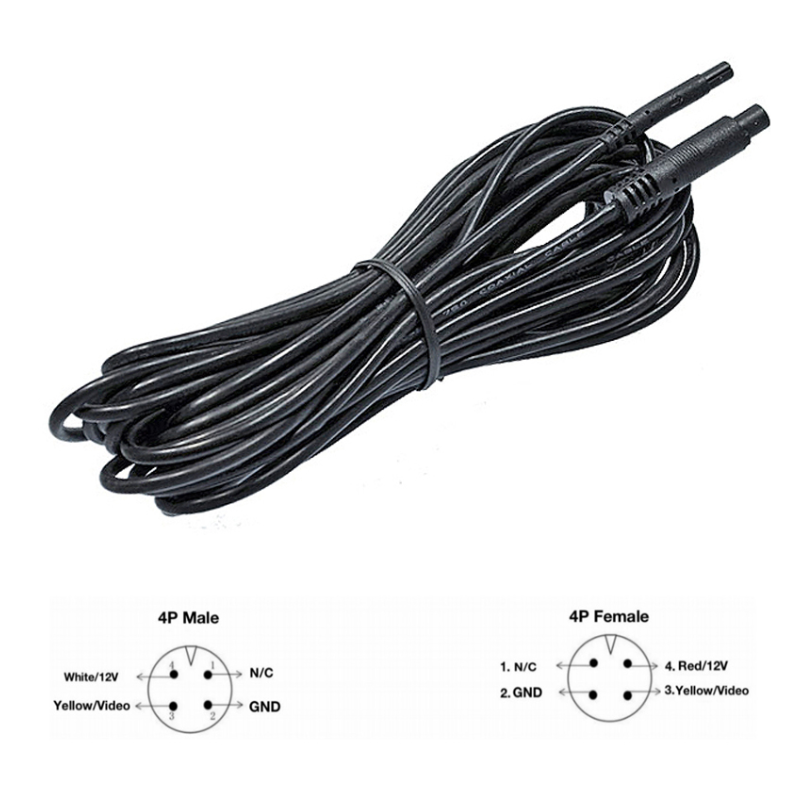

• Cable length: 10m + 1.5m at the camera with 4-pin mini-DIN connectors
