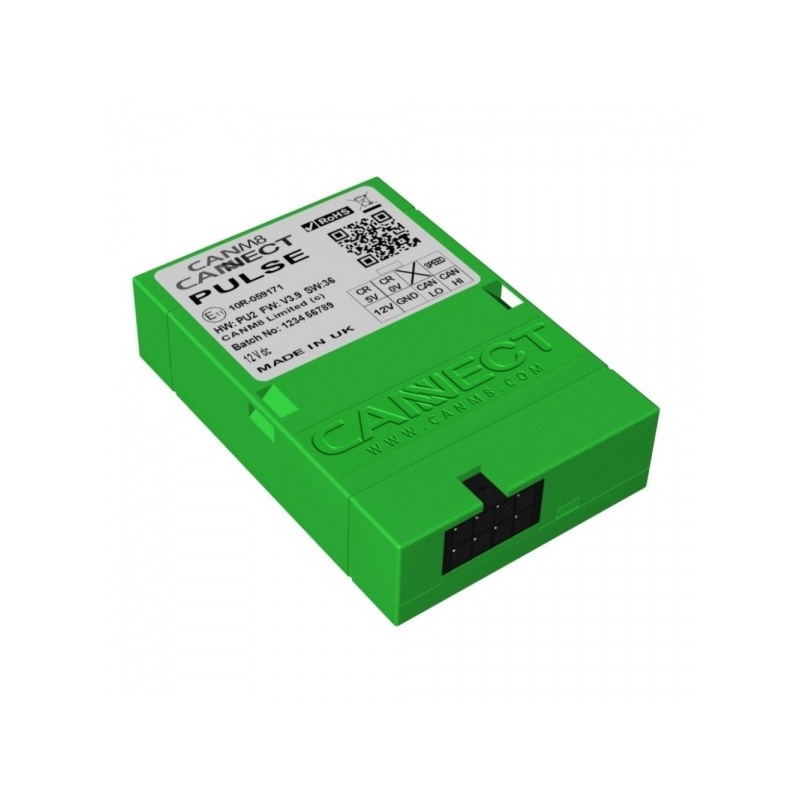

CAN speed module SpeedPulse

The output of the CAN SpeedPulse speed module gives a pulsating +12V pulse (1Hz @ 1.6km/h) when the car is driving. Suitable for any device to generate the necessary speed pulse when an analog pulse is not available in the car. The most common installation location is taxi meters.

Compatible with almost all cars that use CAN signals
Automatic detection of CAN profile
+12V pulse (1Hz @ 1.6km/h),

Red: power supply +12V, Black: ground, White: CAN H, Blue: CAN L

Green: 12V output
LED on the block: red flashing – the module is searching for CAN information, red on – CAN information found, car type not yet identified, green – CAN information available and identified, green flashing: car speed detected
