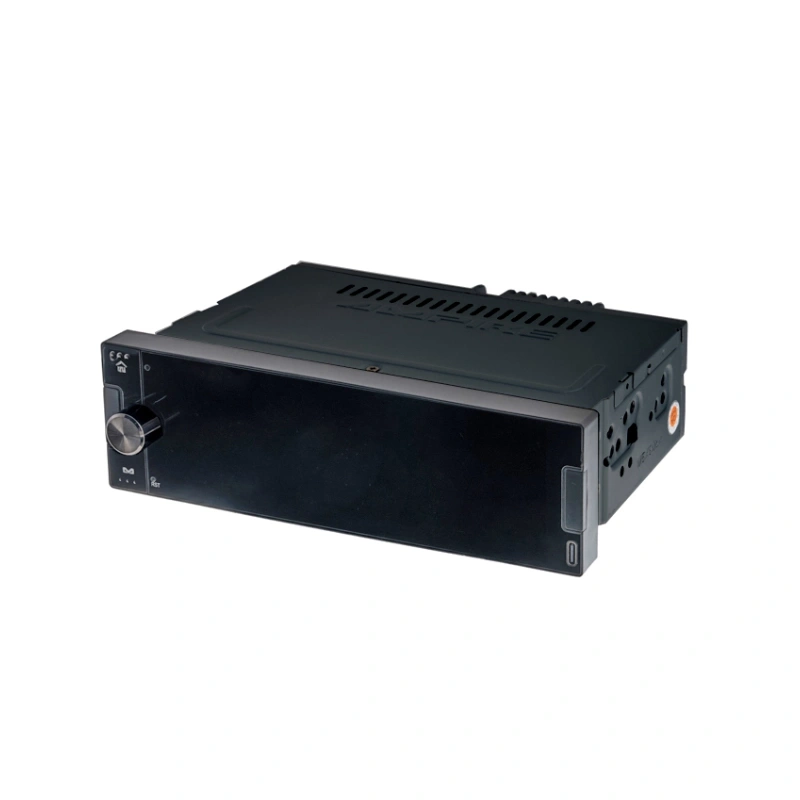

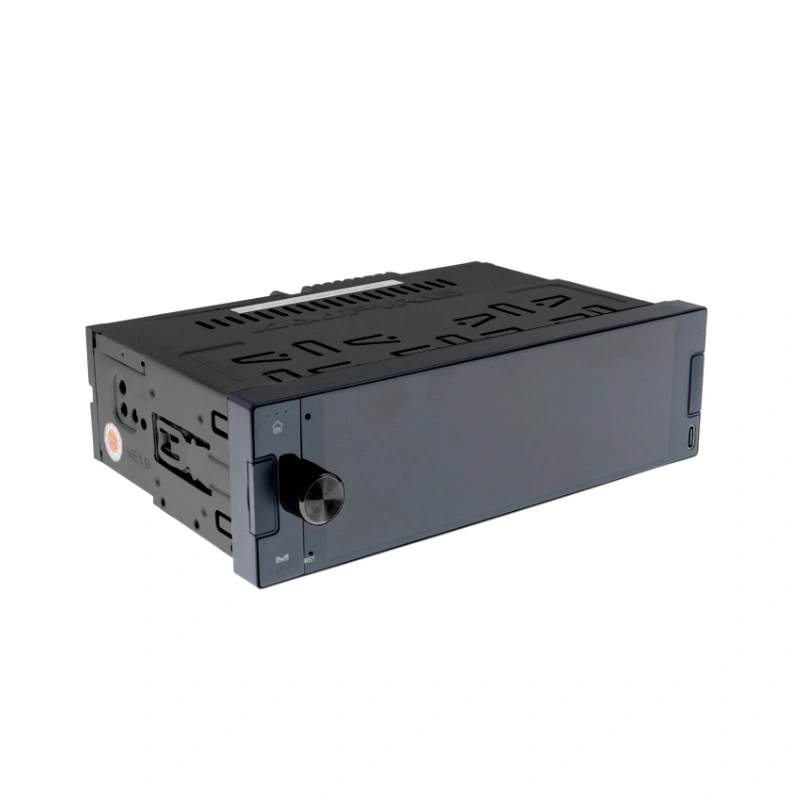

Perfect fit in the classic 1-DIN format

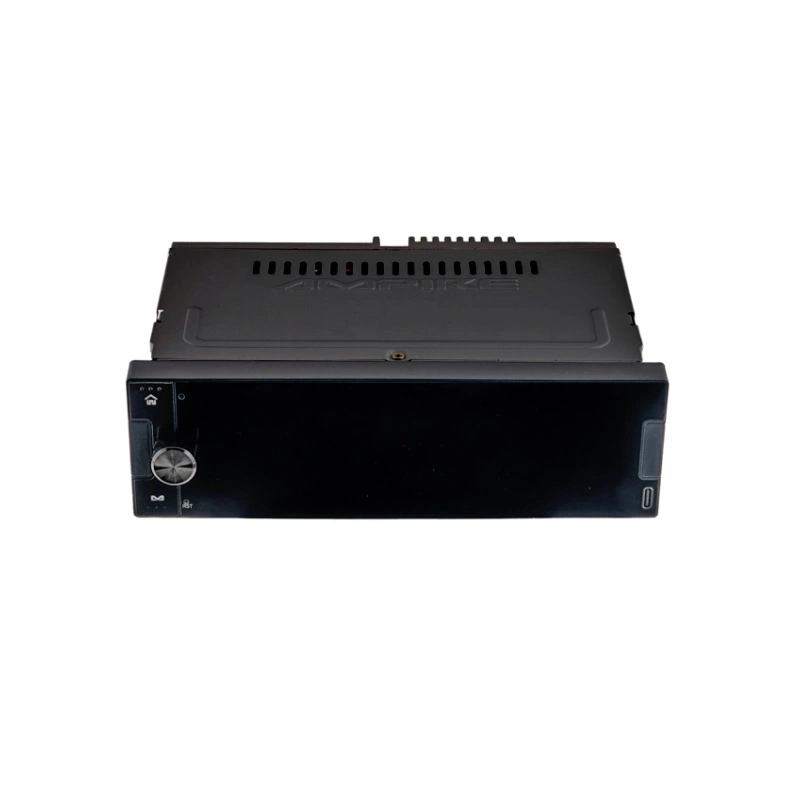

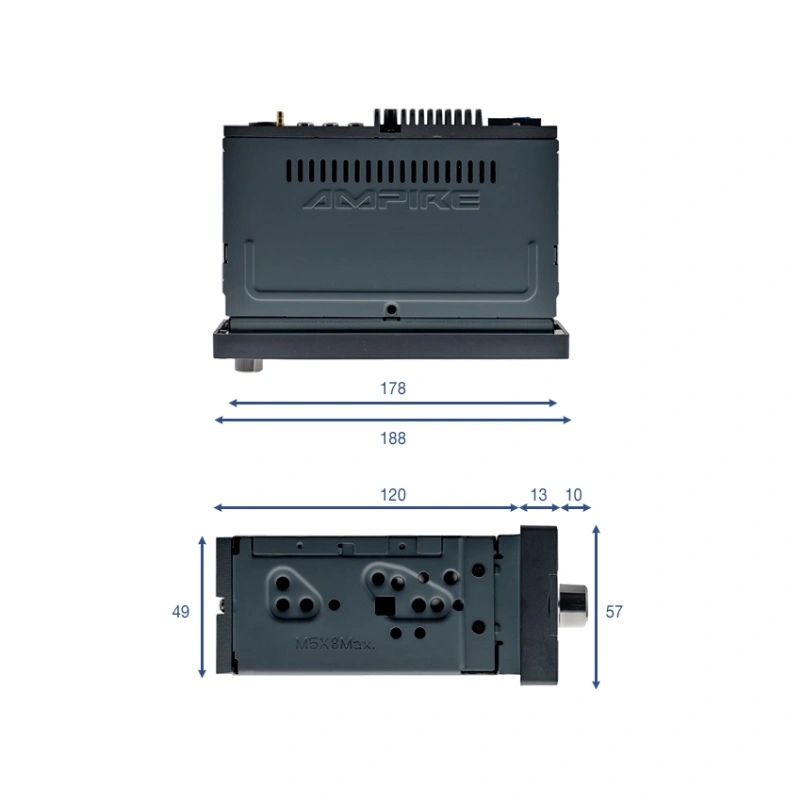

The CPR60 was developed specifically for classic and vintage vehicles, and thanks to its compact dimensions (188 × 57 mm) and an installation depth of only 120 mm, it fits perfectly into any standard 1-DIN radio slot. The minimalist look of the front panel blends harmoniously with any dashboard.

Wireless smartphone connectivity and modern entertainment

Experience next-generation connectivity:

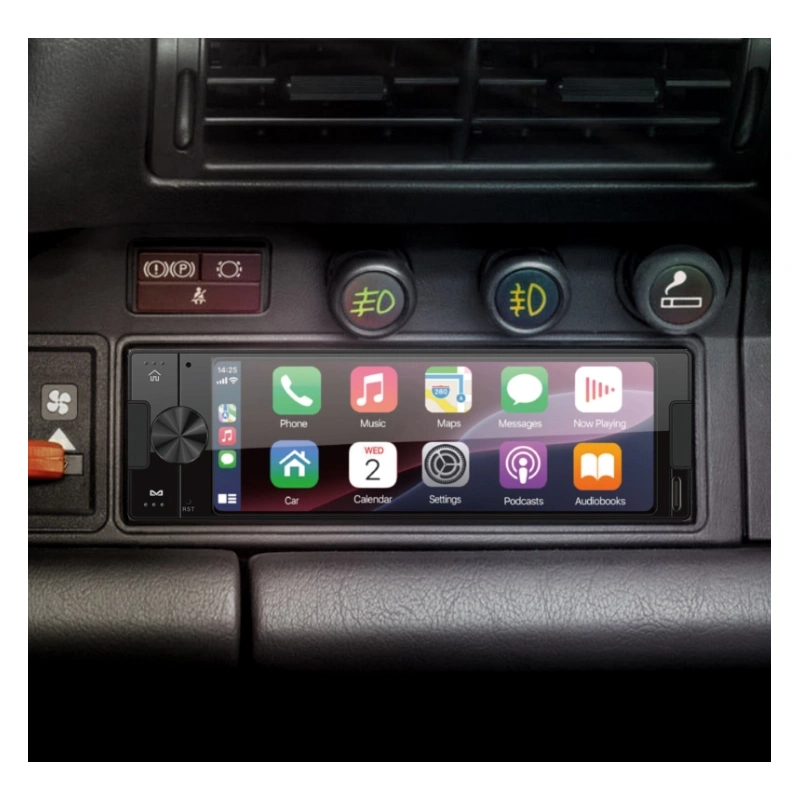

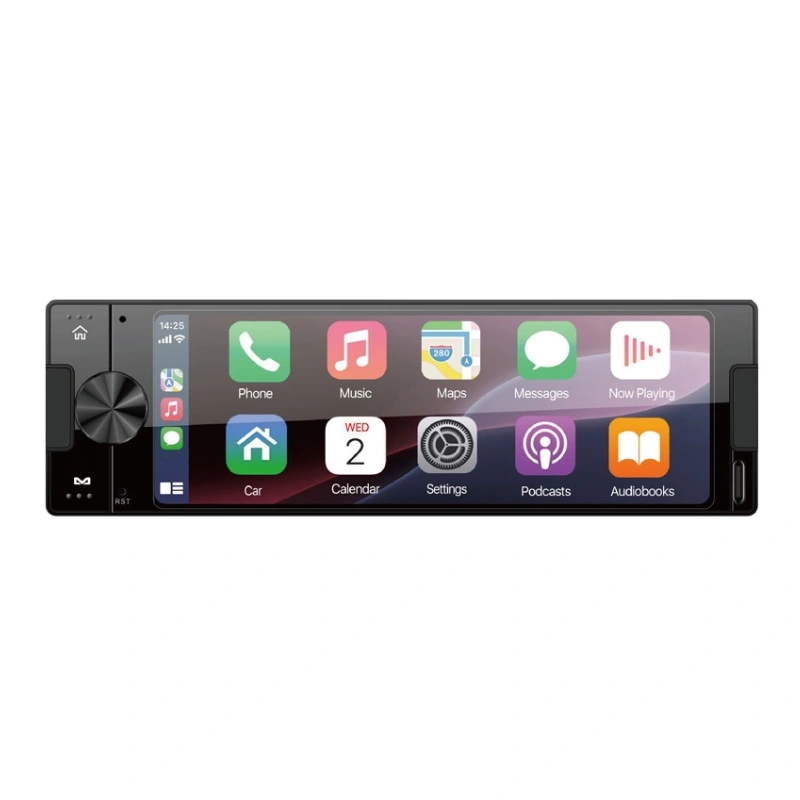

• Wireless Apple CarPlay and Android Auto – connect your compatible smartphone wirelessly and use navigation, music streaming (e.g. Spotify, Apple Music), and messages directly via the car radio’s large 6.38" (162 mm) touchscreen.
• Excellent radio reception – enjoy clear sound thanks to the high-quality DAB+ receiver and classic FM radio.

Full control and versatile connections

The CPR60 offers more than just listening to music:

• Safer parking – two video inputs support optional front or rear view cameras. High-resolution AHD quality as well as CVBS compatibility are supported.
• Multimedia center – connect additional devices via the AV input, such as a TV tuner or DVD player.
• Additional monitor support – the CVBS video output allows the screen image to be displayed on an external monitor as well.
• Hands-free calling – thanks to the integrated Bluetooth hands-free system and the built-in microphone in the front panel, you can drive safely and talk on the phone conveniently.
• Microphone – for even better call quality, an external microphone is available as an optional accessory.
• Bluetooth audio streaming (A2DP) – naturally supported.

Better sound and convenient control

Get the most out of your new car radio:

• Powerful sound – the integrated 4 × 48 W amplifier provides strong sound for your existing speakers.
• Expandable sound system – for more demanding audio projects, three stereo preamp outputs (pre-outs) are available for connecting additional amplifiers.
• Steering wheel controls – the car radio supports certain factory-installed steering wheel control systems with a resistance matrix. Connection and programming must be carried out by a qualified technician.

Charging and media playback via USB

• USB-C port – the USB-C port located on the front panel allows fast charging of your smartphone.

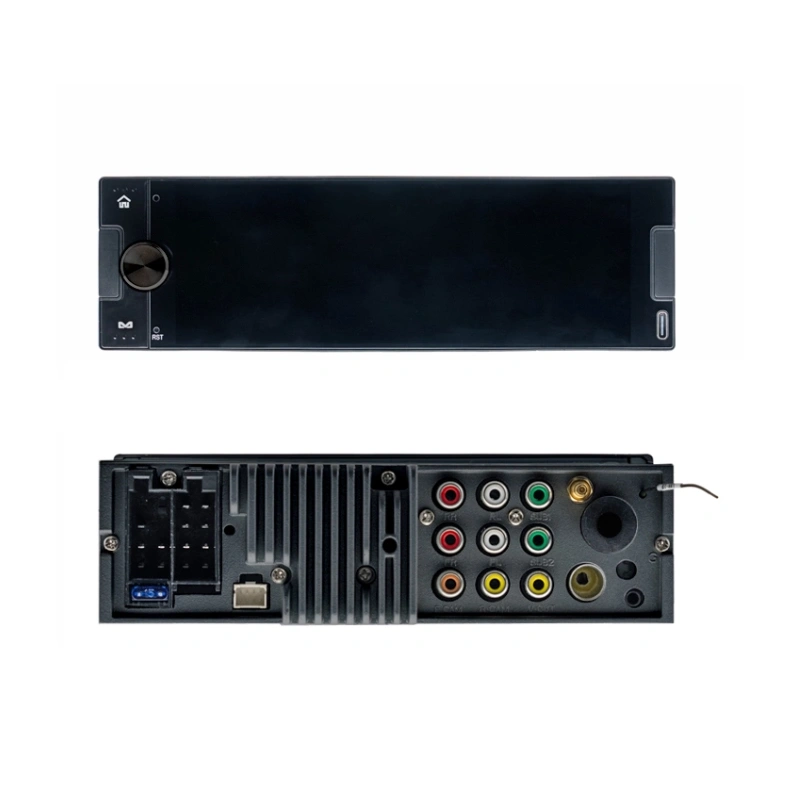

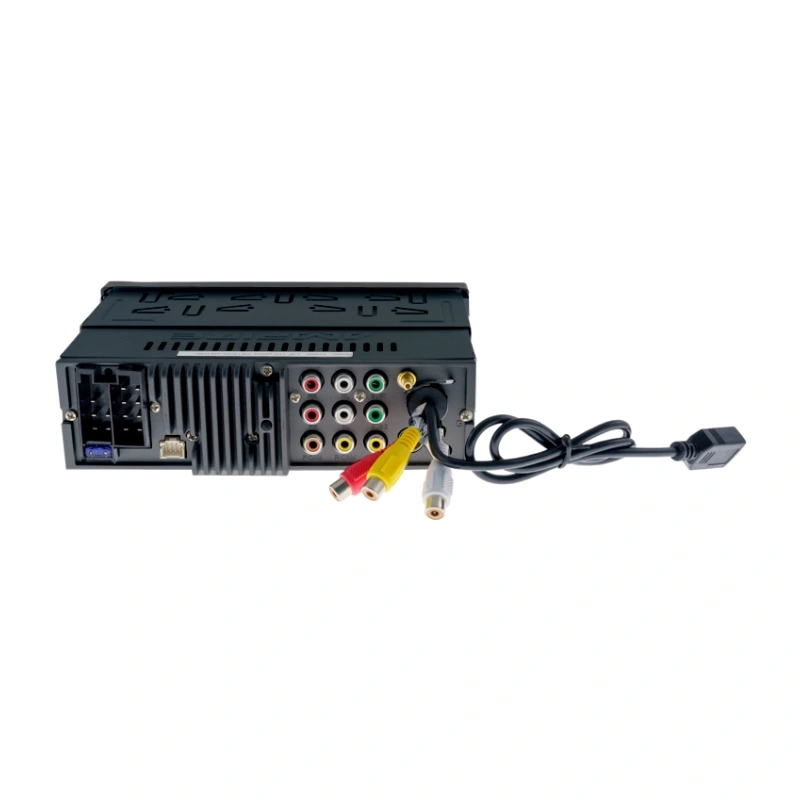

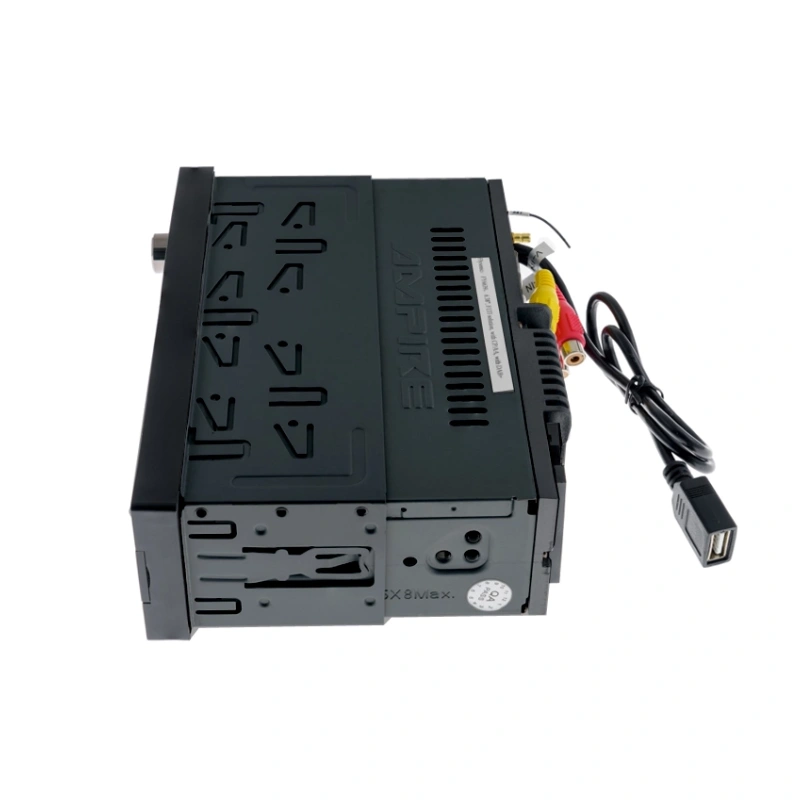

• USB-A port – the USB-A port on the rear of the device allows playback of various audio and video formats from a USB flash drive. If you want to access this USB input after installation, we recommend ordering a suitable USB mounting socket as an accessory.

Give your classic car the latest technology with the AMPIRE CPR60 – the ideal combination of historic style and digital convenience.

Features

• 16.21 cm (6.38") color touchscreen
• Wireless Apple CarPlay and Android Auto
• USB-A port on the rear of the device, with a maximum output current of 1.5 A, for various USB media

Supported formats

• File systems: FAT32, NTFS, EXFAT
• Audio: AAC, APE, FLAC, ATRC, ANR, ALAC, M4A, MP3, OGG Vorbis, COOK, WMA
• Video: 1080p, ASF, AVI, DAT, FLV, Sorenson, VOB, M4V, 3GP, H.263, H.264, H.265, MKV, PMP, MPG, MPEG1, MPEG2, MPEG4, MOV, MP4, TS/TP, RMVB, RV8/9/10, VC1 (720×576), M2TS
• Images: JPEG, JPG, BMP, PNG

Additionally

• USB-C charging port on the front of the device, with a maximum output current of 3 A
• Max. 4 × 48 W amplifier output power
• Bluetooth receiver for A2DP audio streaming
• Bluetooth hands-free calling via integrated microphone
• DAB+ radio receiver with FM and RDS functions
• A physical volume control and physical buttons complement the large touchscreen

Note

A compatible smartphone is required to use wireless Apple CarPlay and Android Auto.
